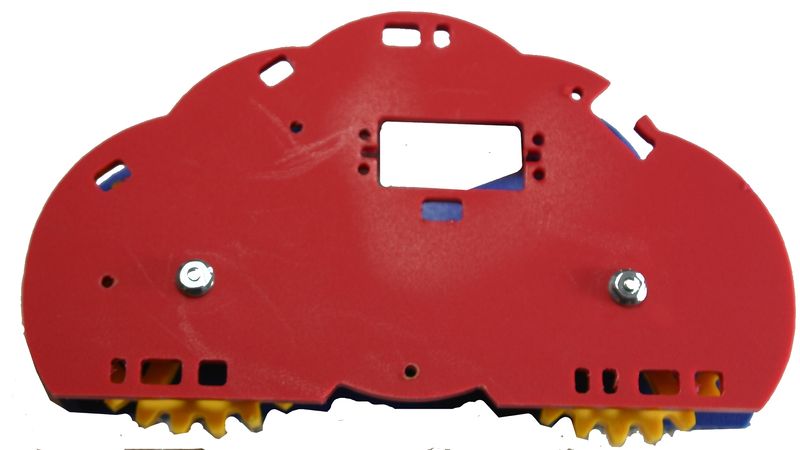

Place the inner plate on the screws (with the inscribed circles face down toward the gears) and use the nuts to secure. Proper tension on the nuts is important. The gears should be able to spin for a couple of seconds if you flick them with your hand. However, they should not wobble between the two large spacers.
